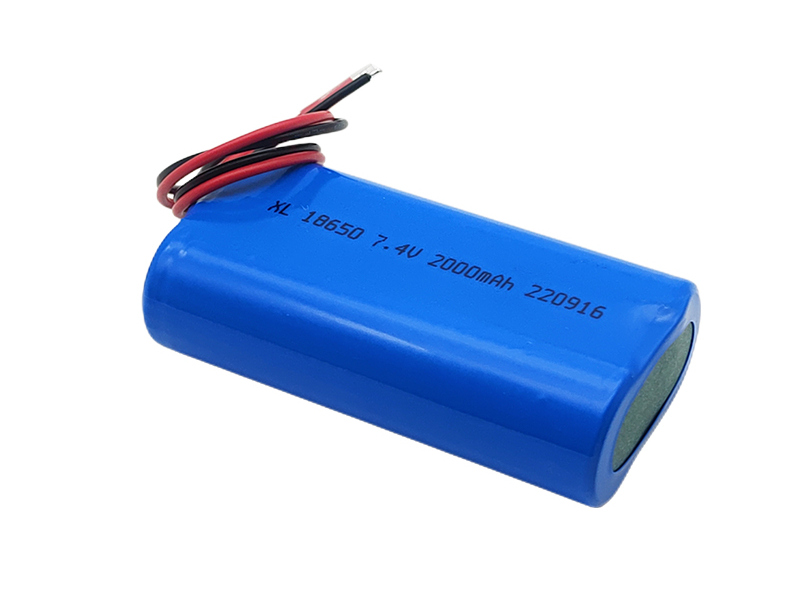

7.4V cylindrical lithium battery Product model: XL 7.4V 2000mAh
7.4V cylindrical lithium battery technical parameters (specific design according to customer requirements - voltage/capacity/size/circuit)
Single battery model: 18650
·Single cell battery voltage: 3.7V
·Nominal voltage of the battery pack after combination: 7.4V
·Single cell battery capacity: 2.0Ah
·Combination method: 2 series 1 parallel
·Voltage range of the combined battery after combination: 6.0~8.4V
·Capacity of the combined battery after combination: 2.0Ah
·Battery pack power: 14.8Wh
·Battery pack size: 20*39*67mm
·Maximum discharge current: <2.0A
·Instantaneous discharge current: 4~6A
·Maximum charging current: 0.2~0.5C
·Number of charge and discharge cycles: >500 times
·Main chips: (Seiko, TI)
7.4V cylindrical lithium battery
·Comply with relevant national battery standards and requirements
·All finished batteries are calibrated and tested before leaving the factory. Can be used directly
